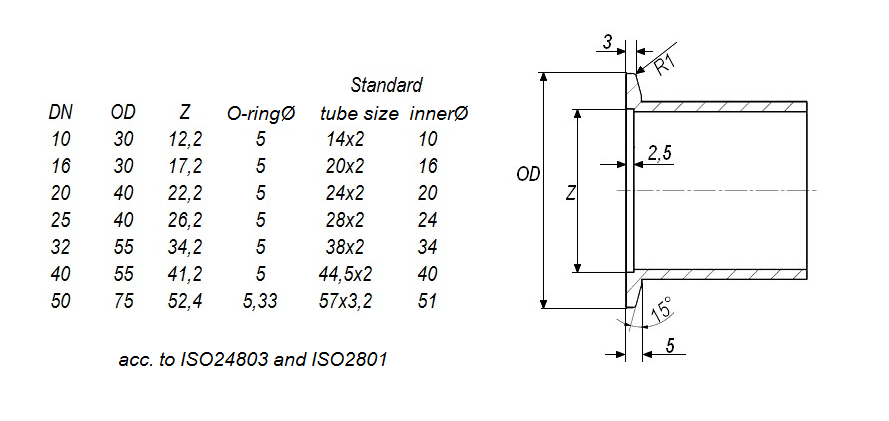

ISO-KF dimension

ISO-KF Wingnut clamp

- suitable for use with
elastomer seals
pressure range 0 - 2500hPa
-Temperature: -196°C to 200°C
screw, wing nut st.st.
Max. torque: 8 Nm
KF-Wingnut clamp DN 10/16 A=16 B=42 C=63 Alu #KSE
KF-Wingnut clamp DN 25 A=16 B=52 C=72 Alu #KSF
KF-Wingnut clamp DN 40 A=16 B=68 C=90 Alu #KSG
KF-Wingnut clamp DN 50 A=20 B=91 C=113 Alu #KSH

ISO-KF Single clamp

- suitable for use with elastomer seals
short and long version
pressure range 0 - 1500hPa
-Temperature: -196°C to 200°C
hexagon-screw M6 x 20 st.st.
Max. torque: 8 Nm
KF-Single clamp DN10-50 A=20 B=20 C=15 D=11.5 E=15 Alu/304 #KPA
KF-Single clamp DN10-50 A=24 B=20 C=14 D=12 E=14 Alu/304 #KPB

ISO-KF Centering ring

- Temperature: -15 to 200 °C
- pressure range 10-7 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
KF-Centering ring DN10 304/Viton #KZA
KF-Centering ring DN16 304/Viton #KZB
KF-Centering ring DN20 304/Viton #KZC
KF-Centering ring DN25 304/Viton #KZD
KF-Centering ring DN32 304/Viton #KZE
KF-Centering ring DN40 304/Viton #KZF
KF-Centering ring DN50 304/Viton #KZG
KF-Centering ring DN10 Alu/Viton #KZH
KF-Centering ring DN16 Alu/Viton #KZJ
KF-Centering ring DN20 Alu/Viton #KZK
KF-Centering ring DN25 Alu/Viton #KZL
KF-Centering ring DN32 Alu/Viton #KZM
KF-Centering ring DN40 Alu/Viton #KZN
KF-Centering ring DN50 Alu/Viton #KZP
KF-Centering ring DN10 316L/Viton #K1A
KF-Centering ring DN16 316L/Viton #K1B
KF-Centering ring DN25 316L/Viton #K1C
KF-Centering ring DN40 316L/Viton #K1D
KF-Centering ring DN50 316L/Viton #K1E

ISO-KF Reducer centering ring

- Temperature: -15 to 200 °C
- pressure range 10-7 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
KF-Reducer centering ring DN10/16 Alu/Viton #KXF
KF-Reducer centering ring DN20/25 Alu/Viton #KXG
KF-Reducer centering ring DN40/32 Alu/Viton #KXH

ISO-KF Outer centering ring

- Temperature: -196 to 200 °C
- pressure range 10-7 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
KF-Outer centering ring with inner ring without O-ring DN16 304/ - /304 #KCA
KF-Outer centering ring with inner ring without O-ring DN25 304/ - /304 #KCB
KF-Outer centering ring with inner ring without O-ring DN40 304/ - /304 #KCC
KF-Outer centering ring with inner ring without O-ring DN50 304/ - /304 #KCD
KF-Outer centering ring with O-ring and inner ring DN16 304/Viton/Alu #KCE
KF-Outer centering ring with O-ring and inner ring DN25 304/Viton/Alu #KCF
KF-Outer centering ring with O-ring and inner ring DN40 304/Viton/Alu #KCG
KF-Outer centering ring with O-ring and inner ring DN50 304/Viton/Alu #KCH
KF-Outer centering ring DN16 Viton/Alu #KCJ
KF-Outer centering ring DN25 Viton/Alu #KCK
KF-Outer centering ring DN40 Viton/Alu #KCL
KF-Outer centering ring DN50 Viton/Alu #KCM
KF-Outer centering ring DN16 Viton/304 #KCN
KF-Outer centering ring DN25 Viton/304 #KCP
KF-Outer centering ring DN40 Viton/304 #KCQ
KF-Outer centering ring DN50 Viton/304 #KCR

ISO-KF Flexible metal hose

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 0 hPa gauge pressure
- customized length on request
- more dim. acc. to table
KF-Flexible metal hose DN16 L=250 304 #KWA
KF-Flexible metal hose DN16 L=500 304 #KWB
KF-Flexible metal hose DN16 L=750 304 #KWC
KF-Flexible metal hose DN16 L=1000 304 #KWD
KF-Flexible metal hose DN16 L=1500 304 #KW1
KF-Flexible metal hose DN16 L=2000 304 #KW2
KF-Flexible metal hose DN25 L=250 304 #KWE
KF-Flexible metal hose DN25 L=500 304 #KWF
KF-Flexible metal hose DN25 L=750 304 #KWG
KF-Flexible metal hose DN25 L=1000 304 #KWH
KF-Flexible metal hose DN25 L=1500 304 #KW3
KF-Flexible metal hose DN25 L=2000 304 #KW4
KF-Flexible metal hose DN40 L=250 304 #KWJ
KF-Flexible metal hose DN40 L=500 304 #KWK
KF-Flexible metal hose DN40 L=750 304 #KWL
KF-Flexible metal hose DN40 L=1000 304 #KWM
KF-Flexible metal hose DN40 L=1500 304 #KWZ
KF-Flexible metal hose DN40 L=2000 304 #KWN
KF-Flexible metal hose DN50 L=200 304 #KW+
KF-Flexible metal hose DN50 L=250 304 #KWP
KF-Flexible metal hose DN50 L=500 304 #KWQ
KF-Flexible metal hose DN50 L=750 304 #KWR
KF-Flexible metal hose DN50 L=1000 304 #KWS
KF-Flexible metal hose DN50 L=1500 304 #KW5
KF-Flexible metal hose DN50 L=2000 304 #KW6
KF-Flexible metal hose DN40 L=500 316L #KW8

ISO-KF Formed bellows

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 1000 hPa gauge pressure
- customized length on request
- more dim. acc. to table
KF-Formed bellows DN16 L=60 bellows 316L flange 304 #KFB
KF-Formed bellows DN16 L=100 bellows 316L flange 304 #KFC
KF-Formed bellows DN16 L=120 bellows 316L flange 304 #KFD
KF-Formed bellows DN25 L=100 bellows 316L flange 304 #KFF
KF-Formed bellows DN25 L=120 bellows 316L flange 304 #KFG
KF-Formed bellows DN40 L=100 bellows 316L flange 304 #KFH
KF-Formed bellows DN40 L=120 bellows 316L flange 304 #KFJ
KF-Formed bellows DN50 L=100 bellows 316L flange 304 #KFK
KF-Formed bellows DN50 L=120 bellows 316L flange 304 #KFL

ISO-KF Braided hose

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- customized length on request
- more dim. acc. to table
KF-Braided hose DN25 L=120 304 #KWV
KF-Braided hose DN40 L=120 304 #KWW
KF-Braided hose DN50 L=120 304 #KWX
KF-Braided hose DN50 L=250 304 #KWY

ISO-KF Formed Bellows weld end

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 1000 hPa gauge pressure
- customized length on request
- more dim. acc. to table
KF-Formed Bellows weld end DN16 bellows L=90 flange 304 #KFN
KF-Formed Bellows weld end DN25 bellows L=120 flange 304 #KFQ
KF-Formed Bellows weld end DN40 bellows L=120 flange 304 #KFS
KF-Formed Bellows weld end DN50 bellows L=120 flange 304 #KFU

ISO-KF Blank flange

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Blank flange DN10 304 #KBA
KF-Blank flange DN16 304 #KBB
KF-Blank flange DN25 304 #KBC
KF-Blank flange DN40 304 #KBD
KF-Blank flange DN50 304 #KBE
KF-Blank flange DN63 304 #KBH
KF-Blank flange DN10 316L #K1F
KF-Blank flange DN16 316L #K1G
KF-Blank flange DN25 316L #K1H
KF-Blank flange DN40 316L #K1J
KF-Blank flange DN50 316L #K1K
KF-Blank flange DN10 Alu #KBL
KF-Blank flange DN16 Alu #KBM
KF-Blank flange DN25 Alu #KBN
KF-Blank flange DN40 Alu #KBP
KF-Blank flange DN50 Alu #KBQ

ISO-KF Weld flange

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Weld flange DN16 for tube 20x2 304 #KAA
KF-Weld flange DN16 for tube 19x1.65 304 #KAB
KF-Weld flange DN25 for tube 28x2 304 #KAC
KF-Weld flange DN25 for tube 25.4x1.65 304 #KAD
KF-Weld flange DN40 for tube 44.5x2 304 #KAE
KF-Weld flange DN40 for tube 38x1.5 304 #KAF
KF-Weld flange DN50 for tube 57x3.2 304 #KAG
KF-Weld flange DN50 for tube 54x2 304 #KAH
KF-Weld flange DN25 for tube 28x2 316L #KAJ
KF-Weld flange DN40 for tube 44.5x2 316L #KAK
KF-Weld flange DN50 for tube 57x3.2 316L #KAL

ISO-KF Flange tubulated

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Flange tubulated DN10 L=26 with tube 14x2 304 #KHA
KF-Flange tubulated DN10 L=30 with tube 14x2 304 #KHB
KF-Flange tubulated DN10 L=20 with tube 16x2 304 #KJH
KF-Flange tubulated DN16 L=40 with tube 19.05x1.65 304 #KHL
KF-Flange tubulated DN16 L=30 with tube 20x2 304 #KHM
KF-Flange tubulated DN16 L=52 with tube 20x2 304 #KHN
KF-Flange tubulated DN16 L=70 with tube 20x2 304 #KHP
KF-Flange tubulated DN25 L=26 with tube 28x1.5 304 #KHQ
KF-Flange tubulated DN25 L=40 with tube 25.4 x 1.65 304 #KHU
KF-Flange tubulated DN25 L=30 with tube 28 x 2 304 #KHV
KF-Flange tubulated DN25 L=52 with tube 28 x 2 304 #KHW
KF-Flange tubulated DN25 L=70 with tube 28 x 2 304 #KHX
KF-Flange tubulated DN40 L=40 with tube 38 x 1.5 304 #KH1
KF-Flange tubulated DN40 L=26 with tube 42.4 x 2 304 #KH2
KF-Flange tubulated DN40 L=26 with tube 44.5x2 304 #KHG
KF-Flange tubulated DN40 L=30 with tube 44.5 x 2 304 #KH3
KF-Flange tubulated DN40 L=58 with tube 44.5 x 2 304 #KH7
KF-Flange tubulated DN40 L=70 with tube 44.5 x 2 304 #KH8
KF-Flange tubulated DN50 L=40 with tube 50.8 x 1.65 304 #KJA
KF-Flange tubulated DN50 L=26 with tube 54x2.0 304 #KHJ
KF-Flange tubulated DN50 L=30 with tube 57 x 3.2 304 #KJD
KF-Flange tubulated DN50 L=58 with tube 57 x 3.2 304 #KJE
KF-Flange tubulated DN50 L=70 with tube 57 x 3.2 304 #KJF
KF-Flange tubulated DN16 L=30 with tube 20 x 2 316L #K1M
KF-Flange tubulated DN25 L=30 with tube 28 x 2 316L #K1L
KF-Flange tubulated DN50 L=30 with tube 57 x 3.2 316L #K1N
KF-Flange tubulated DN40 L=30 with tube 44.5 x 2 316L #K1P

ISO-KF Full Nipple

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Full Nipple DN16 L=80 304 #KNB
KF-Full Nipple DN25 L=100 304 #KNC
KF-Full Nipple DN40 L=130 304 #KND
KF-Full Nipple DN50 L=140 304 #KNE

ISO-KF Radius elbow 90°

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Radius elbow 90° DN10 L=30 304 #KEA
KF-Radius elbow 90° DN16 L=40 304 #KEB
KF-Radius elbow 90° DN25 L=50 304 #KEC
KF-Radius elbow 90° DN40 L=65 304 #KED
KF-Radius elbow 90° DN50 L=70 304 #KEE
KF-Radius elbow 90° DN16 L=40 316L #K1Q
KF-Radius elbow 90° DN25 L=50 316L #K1R
KF-Radius elbow 90° DN40 L=65 316L #K1S
KF-Radius elbow 90° DN50 L=70 316L #K1T

ISO-KF Radius elbow 45°

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Radius elbow 45° DN10 L=30 304 #KEF
KF-Radius elbow 45° DN16 L=25 304 #KEG
KF-Radius elbow 45° DN25 L=32 304 #KEH
KF-Radius elbow 45° DN40 L=40 304 #KEJ
KF-Radius elbow 45° DN50 L=51 304 #KEK
KF-Radius elbow 45° DN16 L=26 316L #K1U
KF-Radius elbow 45° DN16 L=32 316L #K1V
KF-Radius elbow 45° DN16 L=40 316L #K1W
KF-Radius elbow 45° DN16 L=51 316L #K1X

ISO-KF Tee

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Tee DN10 L=60 304 #KTA
KF-Tee DN16 L=80 304 #KTB
KF-Tee DN25 L=100 304 #KTC
KF-Tee DN40 L=130 304 #KTD
KF-Tee DN50 L=140 304 #KTE
KF-Tee DN16 L=80 316L #K1Z
KF-Tee DN25 L=100 316L #K11
KF-Tee DN40 L=130 316L #K12
KF-Tee DN50 L=140 316L #K13

ISO-KF Reducer Tee

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Reducer Tee DN25/16 L=100 R=40 304 #KTL
KF-Reducer Tee DN40/16 L=130 R=40 304 #KTM
KF-Reducer Tee DN40/25 L=130 R=50 304 #KTN
KF-Reducer Tee DN50/16 L=140 R=50 304 #KTP
KF-Reducer Tee DN50/25 L=140 R=65 304 #KTQ
KF-Reducer Tee DN50/40 L=140 R=65 304 #KTR

ISO-KF 4way-Cross

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-4way-Cross DN10 L=60 304 #KKA
KF-4way-Cross DN16 L=80 304 #KKB
KF-4way-Cross DN25 L=100 304 #KKC
KF-4way-Cross DN40 L=130 304 #KKD
KF-4way-Cross DN50 L=140 304 #KKE
KF-4way-Cross DN16 L=80 316L #K2A
KF-4way-Cross DN25 L=100 316L #K2B
KF-4way-Cross DN40 L=130 316L #K2C
KF-4way-Cross DN50 L=140 316L #K2D

ISO-KF Reducer-Cross

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Reducer-Cross DN25/16 L=100 R=40 304 #KKF
KF-Reducer-Cross DN40/16 L=130 R=40 304 #KKG
KF-Reducer-Cross DN40/25 L=130 R=50 304 #KKH
KF-Reducer-Cross DN50/16 L=140 R=40 304 #KKI
KF-Reducer-Cross DN50/25 L=140 R=50 304 #KKJ
KF-Reducer-Cross DN50/40 L=140 R=65 304 #KKK

ISO-KF Cylindrical Reducer

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Cylindrical Reducer DN25/DN16 L=28 304 #KRJ
KF-Cylindrical Reducer DN25/DN16 L=40 304 #KRK
KF-Cylindrical Reducer DN40/DN16 L=28 304 #KRN
KF-Cylindrical Reducer DN40/DN16 L=40 304 #KRP
KF-Cylindrical Reducer DN40/DN25 L=28 304 #KRQ
KF-Cylindrical Reducer DN40/DN25 L=40 304 #KRR
KF-Cylindrical Reducer DN50/DN16 L=40 304 #KRT
KF-Cylindrical Reducer DN50/DN25 L=28 304 #KRU
KF-Cylindrical Reducer DN50/DN25 L=40 304 #KRV
KF-Cylindrical Reducer DN50/DN40 L=28 304 #KRW
KF-Cylindrical Reducer DN50/DN40 L=40 304 #KRX

ISO-KF Conical Reducer

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
KF-Conical Reducer DN25/16 L=40 304 #KRA
KF-Conical Reducer DN40/16 L=40 304 #KRB
KF-Conical Reducer DN40/25 L=40 304 #KRC
KF-Conical Reducer DN50/16 L=40 304 #KRD
KF-Conical Reducer DN50/25 L=40 304 #KRE
KF-Conical Reducer DN50/40 L=40 304 #KRF
KF-Conical Reducer DN25/16 L=40 316L #K2E
KF-Conical Reducer DN40/16 L=40 316L #K2F
KF-Conical Reducer DN40/25 L=40 316L #K2G
KF-Conical Reducer DN50/25 L=40 316L #K2J
KF-Conical Reducer DN50/40 L=40 316L #K2K

ISO-KF Swagelok Adapter

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
KF-Swagelok Adapter DN16 L=40 Tube outerØ 6 304 #ZAB
KF-Swagelok Adapter DN16 L=41 Tube outerØ 8 304 #ZAC
KF-Swagelok Adapter DN25 L=38 Tube outerØ 6 304 #ZAF
KF-Swagelok Adapter DN25 L=39 Tube outerØ 8 304 #ZAG
KF-Swagelok Adapter DN25 L=41 Tube outerØ 10 304 #ZAH
KF-Swagelok Adapter DN25 L=43 Tube outerØ 12 304 #ZAJ
KF-Swagelok Adapter DN40 L=37 Tube outerØ 6 304 #ZAM
KF-Swagelok Adapter DN16 L=40 Tube outerØ 1/4" 304 #ZAZ
KF-Swagelok Adapter DN16 L=53 Tube outerØ 1/2" 304 #ZA2
KF-Swagelok Adapter DN25 L=38 Tube outerØ 1/4" 304 #ZA4
KF-Swagelok Adapter DN25 L=53 Tube outerØ 1/2" 304 #ZA6
KF-Swagelok Adapter DN40 L=38 Tube outerØ 1/4" 304 #ZBA

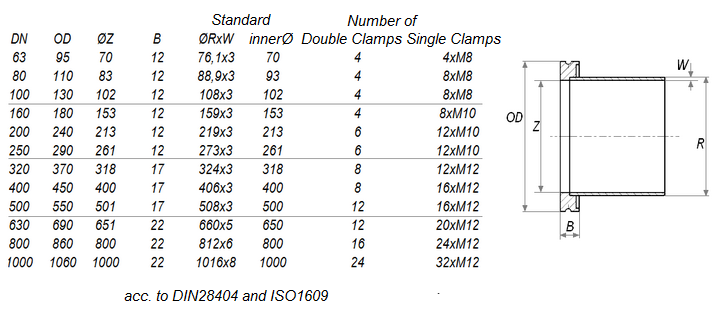

ISO-K Dimension

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
KF-Screwed DN40KF / R1 1/4" thread seal 304 #ZEH

ISO-K Dimension

ISO-K Double clamp

-steel zinc plated: - Temperature: -0 to 150 °C , pressure range to 2500 hPa gauge pressure
st.st.: - Temperature: -196 to 300 °C , pressure range to 2500 hPa gauge pressure
aluminum: - Temperature: -196 to 200 °C , pressure range to 2500 hPa gauge pressure
check pressure-temperature combination!
ISO-K-Double clamp DN63-250 M10 Q=15-27 R=60.5 steel zinc plated #JSA
ISO-K-Double clamp DN320-500 M12 Q=27-33 R=75.5 steel zinc plated #JSB
ISO-K-Double clamp DN630 M12 Q=36-44 R=85 steel zinc plated #JSC
ISO-K-Double clamp DN63-250 M10 Q=15-27 R=60.5 304 #JSD
ISO-K-Double clamp DN63-250 M10 Q=15-27 R=60.5 316L #JSG
ISO-K-Double clamp DN320-500 M12 Q=27-33 R=75.5 316L #JSH
ISO-K-Double clamp DN630 M12 Q=36-44 R=85 316L #JSJ
ISO-K-Double clamp DN63-100 M8 Q=24-27 R=50 Alu #JSK
ISO-K-Double clamp DN160-250 M10 Q=27-32 R=52 Alu #JSL
ISO-K-Double clamp DN320-500 M12 Q=32-38 R=65 Alu #JSM

ISO-K Single clamp

-steel zinc plated: - Temperature: -0 to 150 °C , pressure range to 2500 hPa gauge pressure
st.st.: - Temperature: -196 to 300 °C , pressure range to 2500 hPa gauge pressure
aluminum: - Temperature: -196 to 200 °C , pressure range to 2500 hPa gauge pressure , nur für elastomer seals
check pressure-temperature combination!
ISO-K-Single clamp DN63-100 M8 Q=35 R=23 S=14 steel zinc plated #JPA
ISO-K-Single clamp DN160-250 M10 Q=35 R=23 S=14 steel zinc plated #JPB
ISO-K-Single clamp DN320-500 M12 Q=50 R=30 S=21 steel zinc plated #JPC
ISO-K-Single clamp DN630 M12 Q=60 R=41.5 S=26 steel zinc plated #JPD
ISO-K-Single clamp DN63-100 M8 Q=35 R=23 S=14 304 #JPE
ISO-K-Single clamp DN160-250 M10 Q=35 R=23 S=14 304 #JPF
ISO-K-Single clamp DN320-500 M12 Q=50 R=30 S=21 304 #JPG
ISO-K-Single clamp DN63-100 M10 Q=35 R=23 S=14 Alu /A2 #JPJ
ISO-K-Single clamp DN160-250 M10 Q=35 R=23 S=14 Alu /A2 #JPK
ISO-K-Single clamp DN320-500 M12 Q=50 R=30 S=21 Alu /A2 #JPL
ISO-K-Single clamp DN63-100 M8 Q=30 R=19 S=10 steel zinc plated #JPN

ISO-K Flexible metal hose

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 0 hPa gauge pressure
- customized length on request
- more dim. acc. to table
ISO-K-Flexible metal hose DN63 L=250 304 #JWA
ISO-K-Flexbile metal hose DN63 L=500 304 #JWB
ISO-K-Flexbile metal hose DN63 L=750 304 #JWC
ISO-K-Flexbile metal hose DN63 L=1000 304 #JWD
ISO-K-Flexbile metal hose DN100 L=250 304 #JWJ
ISO-K-Flexbile metal hose DN100 L=500 304 #JWK
ISO-K-Flexbile metal hose DN100 L=750 304 #JWL
ISO-K-Flexbile metal hose DN100 L=1000 304 #JWM
ISO-K-Flexbile metal hose DN160 L=250 304 #JWN
ISO-K-Flexbile metal hose DN160 L=500 304 #JWP
ISO-K-Flexbile metal hose DN160 L=750 304 #JWQ
ISO-K-Flexbile metal hose DN160 L=1000 304 #JWR

ISO-K Formed bellows

- Temperature: -196 to 300 °C
- pressure range 10-9 hPa to 1000 hPa gauge pressure
- customized length on request
- more dim. acc. to table
ISO-K-Formed bellows DN63 L=130 bellows 316L flange 304 #JFA
ISO-K-Formed bellows DN63 L=140 bellows 316L flange 304 #JFN
ISO-K-Formed bellows DN63 L=150 bellows 316L flange 304 #JFB
ISO-K-Formed bellows DN63 L=200 bellows 316L flange 304 #JF L=
ISO-K-Formed bellows DN80 L=130 bellows 316L flange 304 #JFC
ISO-K-Formed bellows DN80 L=150 bellows 316L flange 304 #JFD
ISO-K-Formed bellows DN100 L=130 bellows 316L flange 304 #JFE
ISO-K-Formed bellows DN100 L=150 bellows 316L flange 304 #JFF
ISO-K-Formed bellows DN160 L=150 bellows 316L flange 304 #JFG
ISO-K-Formed bellows DN160 L=220 bellows 316L flange 304 #JFH
ISO-K-Formed bellows DN200 L=220 bellows 316L flange 304 #JFJ
ISO-K-Formed bellows DN250 L=200 bellows 316L flange 304 #JF1
ISO-K-Formed bellows DN250 L=220 bellows 316L flange 304 #JFK
ISO-K-Formed bellows DN320 L=220 bellows 316L flange 304 #JFL

ISO-K Centering ring

- Temperature: -15 to 200 °C
- pressure range 10-7 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
ISO-K-Centering ring DN200 B=8 L=3.9 304/Viton #JZE
ISO-K-Centering ring DN250 B=8 L=3.9 304/Viton #JZF
ISO-K-Centering ring DN63 B=8 L=3.9 Alu/Viton #JZK
ISO-K-Centering ring DN200 B=8 L=3.9 Alu/Viton #JZP
ISO-K-Centering ring DN250 B=8 L=3.9 Alu/Viton #JZQ
ISO-K-Centering ring DN320 B=14 L=5.6 Alu/Viton #JZR

ISO-K Centering ring with outer ring

- Temperature: -15 to 200 °C
- pressure range 10-7 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
ISO-K-Centering ring with outer ring DN63 B=8 L=3.9 304/Viton/Alu #JCA
ISO-K-Centering ring with outer ring DN80 B=8 L=3.9 304/Viton/Alu #JCB
ISO-K-Centering ring with outer ring DN100 B=8 L=3.9 304/Viton/Alu #JCC
ISO-K-Centering ring with outer ring DN160 B=8 L=3.9 304/Viton/Alu #JCD
ISO-K-Centering ring with outer ring DN200 B=8 L=3.9 304/Viton/Alu #JCE
ISO-K-Centering ring with outer ring DN250 B=8 L=3.9 304/Viton/Alu #JCF
ISO-K-Centering ring with outer ring DN320 B=14 L=5.6 304/Viton/Alu #JCG
ISO-K-Centering ring with outer ring DN63 B=8 L=3.9 Alu/Viton/Alu #JCJ
ISO-K-Centering ring with outer ring DN80 B=8 L=3.9 Alu/Viton/Alu #JCK
ISO-K-Centering ring with outer ring DN100 B=8 L=3.9 Alu/Viton/Alu #JCL
ISO-K-Centering ring with outer ring DN160 B=8 L=3.9 Alu/Viton/Alu #JCM
ISO-K-Centering ring with outer ring DN200 B=8 L=3.9 Alu/Viton/Alu #JCN
ISO-K-Centering ring with outer ring DN250 B=14 L=5.6 Alu/Viton/Alu #JCP
ISO-K-Centering ring with outer ring DN320 B=14 L=5.6 Alu/Viton/Alu #JCQ
ISO-K-Centering ring with outer ring DN400 B=14 L=5.6 Alu/Viton/Alu #JCR

ISO-K Blank flange

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
Mat.aluminum -196 to 200 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Blank flange DN63 304 #JBA
ISO-K-Blank flange DN80 304 #JBB
ISO-K-Blank flange DN100 304 #JBC
ISO-K-Blank flange DN160 304 #JBD
ISO-K-Blank flange DN200 304 #JBE
ISO-K-Blank flange DN250 304 #JBF
ISO-K-Blank flange DN320 304 #JBG
ISO-K-Blank flange DN400 304 #JBH
ISO-K-Blank flange DN500 304 #JBJ
ISO-K-Blank flange DN630 304 #JBK
ISO-K-Blank flange DN63 316L #JBL
ISO-K-Blank flange DN80 316L #JBM
ISO-K-Blank flange DN100 316L #JBN
ISO-K-Blank flange DN160 316L #JBP
ISO-K-Blank flange DN200 316L #JBQ
ISO-K-Blank flange DN250 316L #JBR
ISO-K-Blank flange DN320 316L #JBS
ISO-K-Blank flange DN63 Alu #JBW
ISO-K-Blank flange DN80 Alu #JBX
ISO-K-Blank flange DN100 Alu #JBY
ISO-K-Blank flange DN160 Alu #JBZ
ISO-K-Blank flange DN200 Alu #JB1
ISO-K-Blank flange DN250 Alu #JB2

ISO-K Weld flange

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Weld flange DN63 L=6 L=6 for tube 76.1x3 304 #JAA
ISO-K-Weld flange DN63 L=8 for tube 76.1x3 304 with welding lip #JAP
ISO-K-Weld flange DN80 L=6 for tube 88.9x3 304 #JAB
ISO-K-Weld flange DN80 L=6 for tube 88.9x3 304 drwg #JAK
ISO-K-Weld flange DN100 L=6 for tube 108x3 304 #JAC
ISO-K-Weld flange DN100 L=6 for tube 108x3 304 drwg #JAL
ISO-K-Weld flange DN100 L=8 for tube 108x3 304 with welding lip #JAQ
ISO-K-Weld flange DN160 L=6 for tube 159x3 304 #JAD
ISO-K-Weld flange DN160 L=8 for tube 159x3 304 with welding lip #JAR
ISO-K-Weld flange DN200 L=6 for tube 219x3 304 #JAE
ISO-K-Weld flange DN250 L=6 for tube 267x3 304 #JAF
ISO-K-Weld flange DN320 L=8 for tube 324x3 304 #JAG
ISO-K-Weld flange DN400 L=8 for tube 406x3 304 #JAH
ISO-K-Weld flange DN500 L=8 for tube 508x4 304 #JAS
ISO-K-Weld flange DN63 L=6 for tube 76.1x3 316L #JAM
ISO-K-Weld flange DN100 L=6 for tube 108x3 316L #JAN
ISO-K-Weld flange DN160 L=6 for tube 159x3 316L #JAJ

ISO-K Flange tubulated

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Flange tubulated DN63 with tube Ø76.1x3 L=100 304 #JHA
ISO-K-Flange tubulated DN80 with tube Ø88.9x3 L=100 304 #JHB
ISO-K-Flange tubulated DN100 with tube Ø108x3 L=100 304 #JHC
ISO-K-Flange tubulated DN160 with tube Ø159x3 L=100 304 #JHD
ISO-K-Flange tubulated DN200 with tube Ø219x3 L=100 304 #JHE
ISO-K-Flange tubulated DN250 with tube Ø267x3 L=100 304 #JHF
ISO-K-Flange tubulated DN320 with tube Ø324x3 L=100 304 #JHG
ISO-K-Flange tubulated DN400 with tube Ø406x3 L=100 304 #JHH
ISO-K-Flange tubulated DN500 with tube Ø508x4 L=100 304 #JHJ

ISO-K Full Nipple

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Full Nipple DN63 L=176 304 #JNA
ISO-K-Full Nipple DN100 L=216 304 #JNC
ISO-K-Full Nipple DN160 L=138 304 #JND
ISO-K-Full Nipple DN200 L=178 304 #JNF
ISO-K-Full Nipple DN250 L=208 304 #JNG

ISO-K Conical Reducer

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Conical Reducer DN100/63 L=63 304 #JRB
ISO-K-Conical Reducer DN100/80 L=63 304 #JRC
ISO-K-Conical Reducer DN160/63 L=63 304 #JRD
ISO-K-Conical Reducer DN160/100 L=104 304 #JRF

ISO-K Cylindrical Reducer

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Cylindrical Reducer DN100/63 L=50 304 #JVB
ISO-K-Cylindrical Reducer DN160/63 L=50 304 #JVD
ISO-K-Cylindrical Reducer DN160/100 L=50 304 #JVF
ISO-K-Cylindrical Reducer DN200/100 L=50 304 #JVH
ISO-K-Cylindrical Reducer DN200/160 L=50 304 #JVJ
ISO-K-Cylindrical Reducer DN250/160 L=50 304 #JVM
ISO-K-Cylindrical Reducer DN250/200 L=50 304 #JVN
ISO-K-Cylindrical Reducer DN100/63 L=50 316L #JVP
ISO-K-Cylindrical Reducer DN160/63 L=50 316L #JVR
ISO-K-Cylindrical Reducer DN160/100 L=50 316L #JVS

ISO-K Mitered elbow 90°

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Mitered elbow 90° DN63 L=88 304 #JMA
ISO-K-Mitered elbow 90° DN160 L=138 304 #JMD
ISO-K-Mitered elbow 90° DN200 L=178 304 #JME
ISO-K-Mitered elbow 90° DN250 L=208 304 #JMF

ISO-K Radius elbow 90°

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Radius elbow 90° DN63 L=88 304 #JEA
ISO-K-Radius elbow 90° DN80 L=98 304 #JEB
ISO-K-Radius elbow 90° DN100 L=108 304 #JEC
ISO-K-Radius elbow 90° DN160 L=138 304 #JED

ISO-K Tee

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Tee DN63 L=176/88 304 #JTA
ISO-K-Tee DN100 L=216/108 304 #JTC
ISO-K-Tee DN160 L=276/138 304 #JTD
ISO-K-Tee DN200 L=356/178 304 #JTE
ISO-K-Tee DN250 L=416/208 304 #JTF
ISO-K-Tee DN100 L=216/108 316L #JTT

ISO-K Reducer-Tee

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Reducer-Tee DN100/63 L=216 R=107 304 #JTH
ISO-K-Reducer-Tee DN160/63 L=276 R=130 304 #JTK
ISO-K-Reducer-Tee DN160/100 L=276 R=131 304 #JTM

ISO-K 4way-Cross

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-4way-Cross DN63 L=176 304 #JKA
ISO-K-4way-Cross DN100 L=216 304 #JKC
ISO-K-4way-Cross DN160 L=276 304 #JKD
ISO-K-4way-Cross DN200 L=356 304 #JKE
ISO-K-4way-Cross DN250 L=416 304 #JKF
ISO-K-6way-Cross DN63 L=176 304 #JKG
ISO-K-6way-Cross DN100 L=216 304 #JKJ
ISO-K-6way-Cross DN160 L=276 304 #JKK
ISO-K-6way-Cross DN200 L=356 304 #JKL
ISO-K-6way-Cross DN250 L=416 304 #JKM

ISO-K Reducer-Cross

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Reducer-Cross DN100/63 L=216/107 304 #JKP
ISO-K-Reducer-Cross DN160/63 L=276/130 304 #JKR
ISO-K-Reducer-Cross DN160/100 L=276/131 304 #JKT
ISO-K-Reducer-Cross DN200/100 L=356/161 304 #JKW

ISO-K Bolt Ring incl. Retaining Ring

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K-Bolt Ring incl. Retaining Ring DN63 304 #JUA
ISO-K-Bolt Ring incl. Retaining Ring DN80 304 #JUB
ISO-K-Bolt Ring incl. Retaining Ring DN100 304 #JUC
ISO-K-Bolt Ring incl. Retaining Ring DN160 304 #JUD
ISO-K-Bolt Ring incl. Retaining Ring DN200 304 #JUE
ISO-K-Bolt Ring incl. Retaining Ring DN250 304 #JUF
ISO-K-Bolt Ring incl. Retaining Ring DN320 304 #JUG

ISO-K Viewport

- Temperature: -50 to 200 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-F-Viewport DN100 Alu window 99/120 borosilicate interchangeable #JZ$
ISO-K-Viewport DN100 304 window 63 borosilicate soldered #JGA

ISO-K/KF Adapter conical

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K/KF-Adapter conical DN63/25 L=63 304 #ZRA
ISO-K/KF-Adapter conical DN63/40 L=63 304 #ZRB
ISO-K/KF-Adapter conical DN63/50 L=63 304 #ZRC
ISO-K/KF-Adapter conical DN80/40 L=63 304 #ZRD
ISO-K/KF-Adapter conical DN80/50 L=63 304 #ZRE
ISO-K/KF-Adapter conical DN100/40 L=63 304 #ZRG
ISO-K/KF-Adapter conical DN100/50 L=63 304 #ZRH

ISO-K/KF Adapter cylindrical

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K/KF-Adapter cylindrical DN63/16 L=50 304 #ZVA
ISO-K/KF-Adapter cylindrical DN63/25 L=50 304 #ZVB
ISO-K/KF-Adapter cylindrical DN63/40 L=50 304 #ZVC
ISO-K/KF-Adapter cylindrical DN63/50 L=50 304 #ZVD
ISO-K/KF-Adapter cylindrical DN100/25 L=50 304 #ZVH
ISO-K/KF-Adapter cylindrical DN100/40 L=50 304 #ZVJ
ISO-K/KF-Adapter cylindrical DN100/50 L=50 304 #ZVK
ISO-K/KF-Adapter cylindrical DN160/40 L=50 304 #ZVL
ISO-K/KF-Adapter cylindrical DN160/50 L=50 304 #ZVM
ISO-K/KF-Adapter cylindrical DN63/40 L=50 316L #ZBN
ISO-K/KF-Adapter cylindrical DN100/40 L=50 316L #ZBP

ISO-K/KF Reducer Tee

- Temperature: Mat.304 -196 to 300 °C
Mat.316L -196 to 350 °C
- pressure range 10-9 hPa to 2500 hPa gauge pressure
- other material on request
- more dim. acc. to table
ISO-K/KF-Reducer Tee DN63/16 L=176 R=75 304 #ZTA
ISO-K/KF-Reducer Tee DN63/25 L=176 R=75 304 #ZTB
ISO-K/KF-Reducer Tee DN63/40 L=176 R=75 304 #ZTC
ISO-K/KF-Reducer Tee DN100/25 L=216 R=100 304 #ZTF
ISO-K/KF-Reducer Tee DN100/40 L=216 R=100 304 #ZTG
ISO-K/KF-Reducer Tee DN160/25 L=276 R=125 304 #ZTK
ISO-K/KF-Reducer Tee DN160/40 L=276 R=125 304 #ZTL

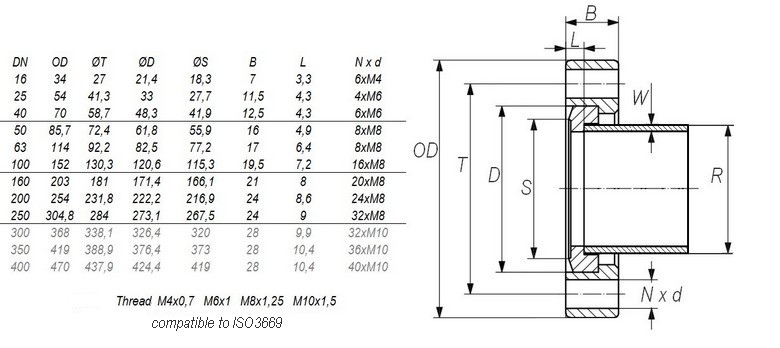

ISO-CF Dimensions

ISO-CF Copper Gasket

- Temperature: -196 to 200 °C
- pressure range 10-13 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
ISO-CF-Copper Gasket oxygen free DN16 D=21.3 d=16.2 10-package #CAA
ISO-CF-Copper Gasket oxygen free DN25 D=32.9 d=25.6 10-package #CAB
ISO-CF-Copper Gasket oxygen free DN40 D=48.1 d=36.7 10-package #CAC
ISO-CF-Copper Gasket oxygen free DN50 D=61.6 d=50.9 10-package #CAD
ISO-CF-Copper Gasket oxygen free DN63 D=82.4 d=63.6 10-package #CAE
ISO-CF-Copper Gasket oxygen free DN100 D=120.5 d=101.7 10-package #CAF
ISO-CF-Copper Gasket oxygen free DN160 D=171.2 d=152.5 5-package #CAG
ISO-CF-Copper Gasket oxygen free DN200 D=222.1 d=203.3 5-package #CAH
ISO-CF-Copper Gasket oxygen free DN250 D=272.9 d=254 5-package #CAJ
ISO-CF-Copper Gasket oxygen free DN300 D=313 d=300 5-package #CAK
ISO-CF-Copper Gasket oxygen free DN350 D=376.9 d=356.3 5-package #CAL
ISO-CF-Copper Gasket oxygen free DN400 D=419 d=407 5-package #CAM
ISO-CF-Copper Gasket oxygen free silver plated DN16 D=21.3 d=16.2 5-package #CAN
ISO-CF-Copper Gasket oxygen free silver plated DN40 D=48.1 d=36.7 5-package #CKA
ISO-CF-Copper Gasket oxygen free silver plated DN63 D=82.4 d=63.6 5-package #CKB
ISO-CF-Copper Gasket oxygen free silver plated DN100 D=120.5 d=101.7 5-package #CKC
ISO-CF-Copper Gasket oxygen free silver plated DN200 D=222.1 d=203.3 5-package #CKD
ISO-CF-Copper Gasket oxygen free silver plated DN250 D=272.9 d=254 5-package #CKE

ISO-CF Viton Gasket

- Temperature: -15 to 200 °C
- pressure range 10-7 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
ISO-CF-Viton Gasket seal DN100 D=120.5 d=101.7 #CHG
ISO-CF-Viton Gasket seal DN160 D=171.2 d=152.5 #CHH
ISO-CF-Viton Gasket seal DN200 D=222.1 d=203.3 #CHI
ISO-CF-Viton Gasket seal DN250 D=272.9 d=254 #CHJ
ISO-CF-Viton Gasket seal with centeringlip DN40 D=48.1 d=36.8 #CHK
ISO-CF-Viton Gasket seal with centeringlip DN63 D=82.4 d=63.6 #CHL
ISO-CF-Viton Gasket seal with centeringlip DN100 D=120.5 d=101.7 #CHM
ISO-CF-Viton Gasket seal with centeringlip DN160 D=171.2 d=152.5 #CHN
ISO-CF-Viton Gasket seal with centeringlip DN250 D=272.9 d=254 #CHP

ISO-CF Flexible hose

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 0 hPa gauge pressure
- more dim. acc. to table
ISO-CF-Flexible hose DN16 fixed /rot. L=250 304 #CAQ
ISO-CF-Flexible hose DN16 fixed /rot. L=500 304 #CAR
ISO-CF-Flexible hose DN16 fixed /rot. L=750 304 #CAS
ISO-CF-Flexible hose DN16 fixed /rot. L=1000 304 #CAT
ISO-CF-Flexible hose DN40 fixed /rot. L=250 304 #CAU
ISO-CF-Flexible hose DN40 fixed /rot. L=500 304 #CAV
ISO-CF-Flexible hose DN40 fixed /rot. L=750 304 #CAW
ISO-CF-Flexible hose DN40 fixed /rot. L=1000 304 #CAX
ISO-CF-Flexible hose DN63 fixed /rot. L=250 304 #CAY
ISO-CF-Flexible hose DN63 fixed /rot. L=500 304 #CAZ
ISO-CF-Flexible hose DN63 fixed /rot. L=750 304 #CA1
ISO-CF-Flexible hose DN63 fixed /rot. L=1000 304 #CA2
ISO-CF-Flexible hose DN100 fixed /rot. L=250 304 #CA3
ISO-CF-Flexible hose DN100 fixed /rot. L=500 304 #CA4
ISO-CF-Flexible hose DN100 fixed /rot. L=750 304 #CA5
ISO-CF-Flexible hose DN100 fixed /rot. L=1000 304 #CA6

ISO-CF Formed bellows

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
- more dim. acc. to table
ISO-CF-Formed bellows DN16 fixed /rot. L=110 bellows 316L flange 304 #CBB
ISO-CF-Formed bellows DN40 fixed /rot. L=160 bellows 316L flange 304 #CBC
ISO-CF-Formed bellows DN63 fixed /rot. L=250 bellows 316L flange 304 #CBD
ISO-CF-Formed bellows DN100 fixed /rot. L=230 bellows 316L flange 304 #CBE
ISO-CF-Formed bellows DN160 fixed /rot. L=270 bellows 316L flange 304 #CBF

ISO-CF Flange Tubulated fixed

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
- more dim. acc. to table
CF-Flange Tubulated DN16 fixed with tube Ø18x1 L=50 304 #CDD
CF-Flange Tubulated DN25 fixed with tube Ø25.4x1.65 L=50 304 #CDE
CF-Flange Tubulated DN40 fixed with tube Ø38x1.5 L=50 304 #CDF
CF-Flange Tubulated DN40 fixed with tube Ø40x1.5 L=50 304 #CDG
CF-Flange Tubulated DN50 fixed with tube Ø50.8x2 L=100 304 #CDJ
CF-Flange Tubulated DN63 fixed with tube Ø63.5x2 L=100 304 #CDL
CF-Flange Tubulated DN100 fixed with tube Ø101.6x2 L=100 304 #CDN
CF-Flange Tubulated DN100 fixed with tube Ø108x2 L=100 304 #CDP
CF-Flange Tubulated DN160 fixed with tube Ø152.4x2 L=100 304 #CDQ
CF-Flange Tubulated DN160 fixed with tube Ø159x2 L=100 304 #CDR
CF-Flange Tubulated DN40 fixed tapped with tube Ø40x1.5 L=50 304 #CDH

ISO-CF Flange Tubulated rotatable

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
- more dim. acc. to table
CF-Flange Tubulated DN16 rot. with tube Ø18x1 L=50 304 #CDU
CF-Flange Tubulated DN25 rot. with tube Ø25.4x1.65 L=50 304 #CDV
CF-Flange Tubulated DN40 rot. with tube Ø38x1.5 L=50 304 #CDW
CF-Flange Tubulated DN40 rot. with tube Ø40x1.5 L=50 304 #CDX
CF-Flange Tubulated DN50 rot. with tube Ø50.8x2 L=100 304 #CDY
CF-Flange Tubulated DN63 rot. with tube Ø63.5x2 L=100 304 #CDZ
CF-Flange Tubulated DN63 rot. with tube Ø70x2 L=100 304 #CD1
CF-Flange Tubulated DN100 rot. with tube Ø101.6x2 L=100 304 #CD2
CF-Flange Tubulated DN100 rot. with tube Ø108x2 L=100 304 #CD3
CF-Flange Tubulated DN160 rot. with tube Ø152.4x2 L=100 304 #CD5

ISO-CF Radius elbow 90°

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
- more dim. acc. to table
CF-Mitered elbow 90° DN16 L=38 304 #CD9
CF-Mitered elbow 90° DN40 L=63 304 #CEA
CF-Mitered elbow 90° DN63 L=105 304 #CEB
CF-Mitered elbow 90° DN100 L=135 304 #CEC
CF-Mitered elbow 90° DN160 L=167 304 #CED

ISO-CF Tee

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
1 rotatable flange
- more dim. acc. to table
CF-Tee DN16 1x rot. per axis L=76/38 304 #CEF
CF-Tee DN40 1x rot. per axis L=126/63 304 #CEG
CF-Tee DN63 1x rot. per axis L=210/105 304 #CEH
CF-Tee DN100 1x rot. per axis L= 270/135 304 #CEJ
CF-Tee DN160 1x rot. per axis L=334/167 304 #CEK
CF-Tee DN16 3x fixed L=76/38 304 #CEM
CF-Tee DN40 3x fixed L=126/63 304 #CEN
CF-Tee DN63 3x fixed L=210/105 304 #CEP
CF-Tee DN100 3x fixed L= 270/135 304 #CEQ
CF-Tee DN160 3x fixed L=334/167 304 #CER

ISO-CF Reducer Tee

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
1 rotatable flange
- more dim. acc. to table
CF-Reducer Tee DN40/DN16 1x rot. per axis L=76/38 304 #CET
CF-Reducer Tee DN63/DN40 1x rot. per axis L=210/77 304 #CEU
CF-Reducer Tee DN100/DN40 1x rot. per axis L=270/95 304 #CEV
CF-Reducer Tee DN100/DN63 1x rot. per axis L=270/95 304 #CEW
CF-Reducer Tee DN160/DN40 1x rot. per axis L=134/120 304 #CEX
CF-Reducer Tee DN160/DN63 1x rot. per axis L=134/120 304 #CEY

ISO-CF 4-way Cross

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
3 rotatable flanges
- more dim. acc. to table
CF-5-way Cross DN16 1x rot. per axis 304 #CE9
CF-5-way Cross DN40 1x rot. per axis 304 #CFA
CF-5-way Cross DN63 1x rot. per axis 304 #CFB
CF-5-way Cross DN100 1x rot. per axis 304 #CFC
CF-5-way Cross DN200 1x rot. per axis 304 #CFE
CF-6-way Cross DN16 1x rot. per axis 304 #CFF
CF-6-way Cross DN40 1x rot. per axis 304 #CFG
CF-6-way Cross DN63 1x rot. per axis 304 #CFH
CF-6-way Cross DN100 1x rot. per axis 304 #CFJ
CF-6-way Cross DN160 1x rot. per axis 304 #CFK
CF-6-way Cross DN200 1x rot. per axis 304 #CFL

ISO-CF Cube

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
- other material on request
- more dim. acc. to table
CF-Cube DN16 1.33"OD L=35 304 #CFM
CF-Cube DN40 2.75"OD L=73 304 #CFN
CF-Cube DN63 4.5"OD L=114 304 #CFP
CF-Cube DN100 6"OD L=152 304 #CFQ
CF-Cube DN160 8"OD L= 203 304 #CFR
CF-Cube DN250 12"OD L= 305 304 #CFT

ISO-CF Viewport

- Temperature: to 350 °C heating/cooling rate max. 3K/min
- pressure range 10-11 hPa to 1000 hPa gauge pressure
- other material on request
- more dim. acc. to table
CF-Viewport DN40 with through holes Kodial glass #CFV
CF-Viewport DN63 with through holes Kodial glass #CFX
CF-Viewport DN100 with through holes Kodial glass #CFZ
CF-Viewport DN160 with through holes Kodial glass #CF1
CF-Viewport DN200 with through holes Kodial glass #CF2

ISO-CF-KF Adapter

- Temperature: -196 to 300 °C degassing to 450 °C
- pressure range 10-12 hPa to 1000 hPa gauge pressure
- more dim. acc. to table
CF-KF-Adapter DN100/40 L=50 304 #CJA

Angle Valve

Angle Valve Manual

- Temperature: -5 to 150 °C
- pressure range 10-8 hPa to 1000 hPa gauge pressure
- housing st.st. or Alu
-shaft bellows sealed or o-ring sealed
- valve plate with o-ring changeable
- more dim. acc. to table
- any position
- for air and noncorrosive gases
-actuator with knob
ISO-KF-Angle Valve DN16 Man. 304 bellows sealed Viton L=55 H=172 ØB=57 Opening 80% #VSA
ISO-KF-Angle Valve DN25 Man. 304 bellows sealed Viton L=51.6H=131-149.5ØB=60 Opening 80% #VSB
ISO-KF-Angle Valve DN25 Man. 304 bellows sealed Viton L=55 H=172 ØB=57 Opening 30% #VK7
ISO-KF-Angle Valve DN40 Man. 304 bellows sealed Viton L=61 H=164-198 ØB=76 Opening 80% #VSC
ISO-KF-Angle Valve DN50 Man. 304 bellows sealed Viton L=55 H=172 ØB=57 Opening 80% #VSD
ISO-KF-Angle Valve DN63 Man. 304 bellows sealed Viton L=55 H=172 ØB=57 Opening 80% #VSE

Angle Valve Pneumatic

- Temperature: -5 to 150 °C
- pressure range 10-8 hPa to 1000 hPa gauge pressure
- housing st.st. or Alu
-shaft bellows sealed or o-ring sealed
- valve plate with o-ring changeable
- more dim. acc. to table
-actuator both sides air,
for pressureless closed or pressureless open order spring
- order position indicator
ISO-KF-Angle Valve DN16 Pneu. 304 bellows sealed Viton L=55 H=172 ØB=57 Opening 80% #VSF
ISO-KF-Angle Valve DN25 Pneu. 304 bellows sealed Viton L=52 H=167 ØB=57 Opening 80% #VSG
ISO-KF-Angle Valve DN25 Pneu. 304 bellows sealed Viton L=50 H=119 ØB=96 #VSL
ISO-KF-Angle Valve DN40 Pneu. 304 bellows sealed Viton L=61 H=210 ØB=76 Opening 80% #VSH
ISO-K-Angle Valve DN63 Pneu. 304 bellows sealed Viton L=83 H=275 ØB=100 Opening 80% #VSK
Position indicator for #VSF.VSG.VSH.VSJ.VSK #VP1
Pneumatic valve electromagnetic 230V/24V for #VSF.VSG.VSL.VSH.VSJ.VSK #VM1
ISO-K-Angle Valve DN100 Pneu. 304 bellows sealed Viton L=114 H=365 ØB=152 #VEJ

Angle Valve Elektromagnetic

- no pneumatic necessary
- Temperature: -0° to 80 °C
- pressure range 10-8 hPa to 1200 hPa gauge pressure
- cycles to first maintanace 200.000
closed if no electricity
- Anschlußspannung 230V 50Hz
- any position
- for air and noncorrosive gases
- closing time <0,1s
- position indicator for open
ISO-KF-Angle Valve DN16 electr. 304 bellows sealed Viton L=38 H=168 ØB=44 D=64 #VAB
ISO-KF-Angle Valve DN25 electr. 304 bellows sealed Viton L=45 H=187 ØB=50 D=69 #VAD
ISO-KF-Angle Valve DN40 electr. 304 bellows sealed Viton L=55 H=221 ØB=73 D=100 #VAF
ISO-KF-Angle Valve DN16 electr. 316 bellows sealed Viton L=38 H=168 ØB=44 D=48 #VEE
ISO-KF-Angle Valve DN25 electr. 316 bellows sealed Viton L=45 H=187 ØB=50 D=56 #VEF
ISO-KF-Angle Valve DN40 electr. 316 bellows sealed Viton L=55 H=221 ØB=73 D=78 #VEG

Inline-Valve Electromagnetic

- Temperature: -0° to 150 °C
- pressure range -1 to 4bar
- leak rate <1x10-7 mbar*l/s
ISO-KF-Ball valve DN25 Man. L=107/80 Tmax.=150°C Gasket: PTFE 304 #KFV
ISO-KF-Ball valve DN40 Man. L=130/107 Tmax.=150°C Gasket: PTFE 304 #KFX

Lineartranslator

UHV-Z-Translator Carina

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator
- graduation of the scale 1mm
- any position
- more dim. acc. to table
UHV-Z-Translator Carina 16T_16T_25 DN16CF stroke25 LFF=28.5-53.5 LT=66 LS=19 LP=33 #LMA
UHV-Z-Translator Carina 16T_16T_50 DN16CF stroke48 LFF=35-83 LT=101 LS=19 LP=33 #LMB

UHV-Z-Feedthrough Pollux

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- hand guided
- graduation of the scale 1mm
- more dim. acc. to table
UHV-Z-Feedthrough Pollux 16_50 DN16CF stroke50 LQ=197-247 #LPM
UHV-Z-Feedthrough Pollux 16_100 DN16CF stroke100 LQ=297-397 #LPN

UHV-Z-Feedthrough Corvus

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator
- graduation of the scale 1mm
- more dim. acc. to table
UHV-Z-Feedthrough Corvus 16_30 DN16CF stroke30 LZ customer request #LVM
UHV-Z-Feedthrough Corvus 16_50 DN16CF stroke50 LZ customer request #LVN
UHV-Z-Feedthrough Corvus 16_100 DN16CF stroke100 LZ customer request #LVP
UHV-Z-Feedthrough Corvus 40_30 DN40CF stroke30 LZ customer request #LVQ
UHV-Z-Feedthrough Corvus 40_50 DN40CF stroke50 LZ customer request #LVR
UHV-Z-Feedthrough Corvus 40_100 DN40CF stroke100 LZ customer request #LVS
UHV-Z-Feedthrough Corvus 16_30 DN16CF stroke30 LZ customer request. for motor #LVT
UHV-Z-Feedthrough Corvus 16_50 DN16CF stroke50 LZ customer request. for motor #LVU
UHV-Z-Feedthrough Corvus 16_100 DN16CF stroke100 LZ customer request. for motor #LVV
UHV-Z-Feedthrough Corvus 40_30 DN40CF stroke30 LZ customer request. for motor #LVW
UHV-Z-Feedthrough Corvus 40_50 DN40CF stroke50 LZ customer request. for motor #LVX
UHV-Z-Feedthrough Corvus 40_100 DN40CF stroke100 LZ customer request. for motor #LVY

UHV-Z-Feedthrough Cetus

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator
- graduation of the scale 1mm
- more dim. acc. to table
UHV-Z-Feedthrough Cetus 16_20 DN16CF stroke20 LZ customer request Accuracy 0.01 #LEA
UHV-Z-Feedthrough Cetus 16_40 DN16CF stroke40 LZ customer request Accuracy 0.01 #LEB
UHV-Z-Feedthrough Cetus 40_20 DN40CF stroke20 LZ customer request Accuracy 0.01 #LEC
UHV-Z-Feedthrough Cetus 40_40 DN40CF stroke40 LZ customer request Accuracy 0.01 #LED

UHV-Z-Feedthrough Lynx

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- hand guided
- graduation of the scale 5mm
- more dim. acc. to table
UHV-Z-Feedthrough Lynx 16_50 DN16CF stroke50 LQ=129 LZ=50-100 Accuracy 0.1 #LYA
UHV-Z-Feedthrough Lynx 16_100 DN16CF stroke100 LQ=179 LZ=75-175 Accuracy 0.1 #LYB
UHV-Z-Feedthrough Lynx 16_150 DN16CF stroke150 LQ=229 LZ=90-240 Accuracy 0.1 #LYC
UHV-Z-Feedthrough Lynx 40_50 DN40CF stroke50 LQ=124 LZ=50-100 Accuracy 0.1 #LYD
UHV-Z-Feedthrough Lynx 40_100 DN40CF stroke100 LQ=174 LZ=75-175 Accuracy 0.1 #LYE
UHV-Z-Feedthrough Lynx 40_150 DN40CF stroke150 LQ=224 LZ=90-240 Accuracy 0.1 #LYF

UHV-Z-Translator Auriga

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator
- graduation of the scale 1mm
- any position
- more dim. acc. to table
UHV-Z-Translator Auriga 40T_40T_50 DN40CF stroke50 LFF=58-108 LT=176-226 LS=50 LP=100 #LAJ
UHV-Z-Translator Auriga 40T_40T_100 DN40CF stroke100 LFF=81-181 LT=229-329 LS=50 LP=100 #LAK
UHV-Z-Translator Auriga 40T_40T_150 DN40CF stroke150 LFF=96-246 LT=285-445 LS=50 LP=100 #LAL
UHV-Z-Translator Auriga 63T_63T_50 DN63CF stroke50 LFF=91-141 LT=233-283 LS=68 LP=100 #LAM
UHV-Z-Translator Auriga 63T_63T_100 DN63CF stroke100 LFF=112-212 LT=283-383 LS=68 LP=100 #LAN

UHV-Z-Translator Virgo

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
- graduation of the scale Lineal 1mm, hand wheeel 0,1mm
- more dim. acc. to table
UHV-Z-Translator Virgo 40_40T_50 DN40CF stroke50 LFF=75-125 LT=235 LS=43 LP=105 #LVA
UHV-Z-Translator Virgo 40_40T_100 DN40CF stroke100 LFF=90-190 LT=300 LS=43 LP=105 #LVB
UHV-Z-Translator Virgo 40_40T_150 DN40CF stroke150 LFF=105-255 LT=365 LS=43 LP=105 #LVC
UHV-Z-Translator Virgo 40_40T_200 DN40CF stroke200 LFF=120-320 LT=430 LS=43 LP=105 #LVD

UHV-Z-Translator Orion

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
- graduation of the scale Lineal 1mm, hand wheeel 0,1mm
- more dim. acc. to table
- CF63_CF40T means base flange DN63CF with through bores
- movable flange DN40CF tapped
UHV-Z-Translator Orion 40_40T_50 DN40CF stroke 50 LFF=75-125 LT=200 LS=63 LP=115 #LNF
UHV-Z-Translator Orion 40_40T_100 DN40CF stroke100 LFF=90-190 LT=255 LS=63 LP=115 #LNG
UHV-Z-Translator Orion 40_40T_150 DN40CF stroke150 LFF=105-255 LT=320 LS=63 LP=115 #LNH
UHV-Z-Translator Orion 40_40T_200 DN40CF stroke200 LFF=163-363 LT=410 LS=59 LP=114 #LNJ
UHV-Z-Translator Orion 40_40T_250 DN40CF stroke250 LFF=190-440 LT=576 LS=63 LP=115 #LNK
UHV-Z-Translator Orion 40_40T_300 DN40CF stroke300 LFF=153-453 LT=518 LS=63 LP=115 #LNL
UHV-Z-Translator Orion 40_40T_400 DN40CF stroke400 LFF=205-605 LT=670 LS=63 LP=115 #LNM
UHV-Z-Translator Orion 40_40T_500 DN40CF stroke500 LFF=226-726 LT=790 LS=63 LP=115 #LNN
UHV-Z-Translator Orion 40_40T_600 DN40CF stroke600 LFF=255-855 LT=920 LS=63 LP=115 #LNP
UHV-Z-Translator Orion 40_40T_900 DN40CF stroke900 LFF=360-1380 LT=450 LS=63 LP=115 #LNQ
UHV-Z-Translator Orion 63_63T_50 DN63CF stroke 50 LFF=85-135 LT=248 LS=69 LP=143 #LNZ
UHV-Z-Translator Orion 63_63T_100 DN63CF stroke100 LFF=95-195 LT=298 LS=69 LP=143 #LN1
UHV-Z-Translator Orion 63_63T_150 DN63CF stroke150 LFF=110-260 LT=348 LS=69 LP=143 #LN2
UHV-Z-Translator Orion 63_63T_200 DN63CF stroke200 LFF=125-325 LT=398 LS=69 LP=131 #LN3
UHV-Z-Translator Orion 63_63T_250 DN63CF stroke250 LFF=155-405 LT=463 LS=69 LP=143 #LN4
UHV-Z-Translator Orion 63_63T_300 DN63CF stroke300 LFF=168-468 LT=538 LS=69 LP=143 #LN5
UHV-Z-Translator Orion 63_63T_400 DN63CF stroke400 LFF=200-600 LT=670 LS=69 LP=143 #LN6
UHV-Z-Translator Orion 63_63T_500 DN63CF stroke500 LFF=230-730 LT=800 LS=69 LP=143 #LN7

UHV-Z-Translator OrionP

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
- graduation of the scale Lineal 1mm, hand wheeel 0,1mm
- more dim. acc. to table
UHV-Z-Translator OrionP 40_40T_50 DN40CF stroke50 LFF=75-125 LT=200 LS=63 LP=115 #LNA
UHV-Z-Translator OrionP 40_40T_100 DN40CF stroke100 LFF=90-190 LT=255 LS=63 LP=115 #LNB
UHV-Z-Translator OrionP 40_40T_150 DN40CF stroke150 LFF=105-255 LT=320 LS=63 LP=115 #LNC
UHV-Z-Translator OrionP 40_40T_200 DN40CF stroke200 LFF=120-320 LT=385 LS=63 LP=115 #LND
UHV-Z-Translator OrionP 40_40T_250 DN40CF stroke250 LFF=135-385 LT=450 LS=63 LP=115 #LNE
UHV-Z-Translator OrionP 63_63T_50 DN63CF stroke50 LFF=85-135 LT=248 LS=69 LP=133 #LNR
UHV-Z-Translator OrionP 63_63T_100 DN63CF stroke100 LFF=95-195 LT=298 LS=69 LP=133 #LNS
UHV-Z-Translator OrionP 63_63T_150 DN63CF stroke150 LFF=110-260 LT=348 LS=69 LP=133 #LNT
UHV-Z-Translator OrionP 63_63T_200 DN63CF stroke200 LFF=125-325 LT=398 LS=69 LP=133 #LNU
UHV-Z-Translator OrionP 63_63T_250 DN63CF stroke250 LFF=140-390 LT=463 LS=69 LP=133 #LNV
UHV-Z-Translator OrionP 63_63T_300 DN63CF stroke300 LFF=168-468 LT=541 LS=69 LP=133 #LNW
UHV-Z-Translator OrionP 63_63T_400 DN63CF stroke400 LFF=200-600 LT=673 LS=69 LP=133 #LNX
UHV-Z-Translator OrionP 63_63T_500 DN63CF stroke500 LFF=230-730 LT=803 LS=69 LP=133 #LNY

UHV-Z-Translator Leo

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
- graduation of the scale Lineal 1mm, hand wheeel 0,005mm
- more dim. acc. to table
UHV-Z-Translator Leo 100_100T_150 DN100CF stroke150 LFF=173-323 LT=406 LS=88 LP=182 #LSC

UHV-Z-Translator Draco

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
- graduation of the scale Lineal 1mm, hand wheeel 0,005mm
- more dim. acc. to table
UHV-Z-Translator Draco 100_100T_50 DN100CF stroke50 LFF=100-150 LT=321 LS=103 LP=174 #LRB
UHV-Z-Translator Draco 100_100T_100 DN100CF stroke100 LFF=110-210 LT=381 LS=103 LP=174 #LRD
UHV-Z-Translator Draco 100_100T_150 DN100CF stroke150 LFF=120-270 LT=441 LS=103 LP=174 #LRE
UHV-Z-Translator Draco 100_100T_200 DN100CF stroke200 LFF=130-330 LT=501 LS=103 LP=174 #LRF
UHV-Z-Translator Draco 100_100T_300 DN100CF stroke300 LFF=150-450 LT=621 LS=103 LP=174 #LRH
UHV-Z-Translator Draco 100_100T_400 DN100CF stroke400 LFF=170-570 LT=741 LS=103 LP=174 #LRK
UHV-Z-Translator Draco 100_100T_500 DN100CF stroke500 LFF=190-690 LT=861 LS=103 LP=174 #LRJ
UHV-Z-Translator Draco 100_100T_600 DN100CF stroke600 LFF=210-810 LT=981 LS=103 LP=174 #LRL
UHV-Z-Translator Draco 100_100T_700 DN100CF stroke700 LFF=230-730 LT=1101 LS=103 LP=174 #LRM
UHV-Z-Translator Draco short 100T_100T_50 DN100CF stroke50 LFF=53-103 LT=337 LS=103 LP=174 #LRN
UHV-Z-Translator Draco short 100T_100T_100 DN100CF stroke100 LFF=56-156 LT=390 LS=103 LP=174 #LRP
UHV-Z-Translator Draco short 100T_100T_150 DN100CF stroke150 LFF=64-214 LT=448 LS=103 LP=174 #LRQ
UHV-Z-Translator Draco short 100T_100T_200 DN100CF stroke200 LFF=72-272 LT=506 LS=103 LP=174 #LRR
UHV-Z-Translator Draco short 160T_160T_100 DN160CF stroke100 LFF=66-166 LT=410 LS=120 LP=200 #LRT
UHV-XYZ-Manipulator Tucana 160T_160T_100 DN160CF stroke100 LFF=222-322 LT=580 LS=115 LP=180 #MTF

UHV-Wobble Stick

UHV-application
- Temperature: -196 to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
- graduation of the scale Lineal 1mm, hand wheeel 0,005mm
- more dim. acc. to table

UHV-Wobble Stick Bsw

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- hand guided
- bellows sealed
UHV-Wobble Stick Bsw DN40CF slide80 + wobble+-22° - Screw surface L= 85-165 X= 90-170 #WWA
UHV-Wobble Stick Bsw DN40CF shift140 + wobble+-22° - Screw surface L=105-295 X=90-230 #WWB
UHV-Wobble Stick Bsw DN40CF shift200 + wobble+-22° - Screw surface L=125-325 X=90-290 #WWC
UHV-Wobble Stick Bsw DN40CF shift280 + wobble+-22° - Screw surface L=150-430 X=90-370 #WWD

UHV-Wobble Stick Msw

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- hand guided
- magnetically coupled, bellows sealed
UHV-Wobble Stick DN40CF Msw shift80 + wobble+-22° - Pin d=6 L= 85-165 X= 170 #WMA
UHV-Wobble Stick DN40CF Msw shift140 + wobble+-22° - Pin d=6 L=105-295 X=230 #WMB
UHV-Wobble Stick DN40CF Msw shift200 + wobble+-22° - Pin d=6 L=125-325 X=290 #WMC
UHV-Wobble Stick DN40CF Msw shift280 + wobble+-22° - Pin d=6 L=150-430 X=370 #WMD

UHV-Wobble Stick BswgQ

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- hand guided
- bellows sealed
UHV-Wobble Stick BswgQ DN40CF shift80 +wobble+-22° +grip +Pincer Grip Q L=137-217 X=121-201 #WWE
UHV-Wobble Stick BswgQ DN40CF shift140 +wobble+-22° +grip +Pincer Grip Q L=163-303 X=121-261 #WWF
UHV-Wobble Stick BswgQ DN40CF shift200 +wobble+-22° +grip +Pincer Grip Q L=187-387 X=121-321 #WWG
UHV-Wobble Stick BswgQ DN40CF shift280 +wobble+-22° +grip +Pincer Grip Q L=223-503 X=121-401 #WWH

UHV-Wobble Stick BswgO BswgO90

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- hand guided
- bellows sealed
UHV-Wobble Stick BswgO DN40CF shift80 +wobble+-22° +grip +Pincer Grip O L=144-224 X=121-201 #WWJ
UHV-Wobble Stick BswgO DN40CF shift140 +wobble+-22° +grip +Pincer Grip O L=170-310 X=121-261 #WWK
UHV-Wobble Stick BswgO DN40CF shift200 +wobble+-22° +grip +Pincer Grip O L=196-396 X=121-321 #WWL
UHV-Wobble Stick BswgO DN40CF shift280 +wobble+-22° +grip +Pincer Grip O L=230-510 X=121-401 #WWM
UHV-Wobble Stick BswgO90 DN40CF shift80 +wobble+-22° +grip +Pincer Grip O90 L=144-224 X=121-201 #WWV
UHV-Wobble Stick BswgO90 DN40CF shift140 +wobble+-22° +grip +Pincer Grip O90 L=170-310 X=121-261 #WWW
UHV-Wobble Stick BswgO90 DN40CF shift200 +wobble+-22° +grip +Pincer Grip O90 L=196-396 X=121-321 #WWX
UHV-Wobble Stick BswgO90 DN40CF shift280 +wobble+-22° +grip +Pincer Grip O90 L=230-510 X=121-401 #WWY

UHV-Wobble Stick BswgrO

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- hand guided
- bellows sealed
UHV-Wobble Stick BswgrO DN40CF shift80 +wobble+-22° +grip +rotate - Pincer Grip O L=144-244 #WWN
UHV-Wobble Stick BswgrO DN40CF shift140 +wobble+-22° +grip +rotate - Pincer Grip O L=170-310 #WWP
UHV-Wobble Stick BswgrO DN40CF shift200 +wobble+-22° +grip +rotate - Pincer Grip O L=196-396 #WWQ
UHV-Wobble Stick BswgrO DN40CF shift280 +wobble+-22° +grip +rotate - Pincer Grip O L=230-510 #WWR

Manipulators

UHV-XYZ-Manipulator Orion

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
- CF63_CF40T means base flange DN63CF with through bores,
movable flange DN40CF tapped
UHV-XYZ-Translator Orion CF40_40T_050_12 stroke Z50 XY+-12 LFF=160-210 LT=230 LS=50 LP=130 #MKA
UHV-XYZ-Translator Orion CF40_40T_100_12 stroke Z100 XY+-12 LFF=175-275 LT=290 LS=50 LP=130 #MKB
UHV-XYZ-Translator Orion CF40_40T_150_12 stroke Z150 XY+-12 LFF=190-340 LT=360 LS=50 LP=130 #MKC
UHV-XYZ-Translator Orion CF40_40T_200_12 stroke Z200 XY+-12 LFF=205-405 LT=428 LS=50 LP=130 #MKD
UHV-XYZ-Translator Orion CF40_40T_250_12 stroke Z250 XY+-12 LFF=222-472 LT=490 LS=50 LP=130 #MKE
UHV-XYZ-Translator Orion CF40_40T_300_12 stroke Z300 XY+-12 LFF=238-538 LT=560 LS=50 LP=130 #MKF
UHV-XYZ-Translator Orion CF40_40T_400_12 stroke Z400 XY+-12 LFF=255-655 LT=715 LS=50 LP=130 #MKG
UHV-XYZ-Translator Orion CF40_40T_500_12 stroke Z500 XY+-12 LFF=275-775 LT=840 LS=50 LP=130 #MKH
UHV-XYZ-Translator Orion CF40_40T_600_12 stroke Z600 XY+-12 LFF=300-900 LT=960 LS=50 LP=130 #MKJ
UHV-XYZ-Translator Orion CF63_40T_050_12 stroke Z50 XY+-12 LFF=230-280 LT=318 LS=80 LP=180 #MQA
UHV-XYZ-Translator Orion CF63_40T_100_12 stroke Z100 XY+-12 LFF=230-330 LT=368 LS=80 LP=180 #MQB
UHV-XYZ-Translator Orion CF63_40T_150_12 stroke Z150 XY+-12 LFF=240-390 LT=428 LS=80 LP=180 #MQC
UHV-XYZ-Translator Orion CF63_40T_200_12 stroke Z200 XY+-12 LFF=251-451 LT=489 LS=80 LP=180 #MQD
UHV-XYZ-Translator Orion CF63_40T_250_12 stroke Z250 XY+-12 LFF=261-511 LT=549 LS=80 LP=180 #MQE
UHV-XYZ-Translator Orion CF63_40T_300_12 stroke Z300 XY+-12 LFF=271-571 LT=609 LS=80 LP=180 #MQF
UHV-XYZ-Translator Orion CF63_40T_400_12 stroke Z400 XY+-12 LFF=303-703 LT=741 LS=80 LP=180 #MQG
UHV-XYZ-Translator Orion CF63_40T_500_12 stroke Z500 XY+-12 LFF=335-835 LT=873 LS=80 LP=180 #MQH
UHV-XYZ-Translator Orion CF63_40T_600_12 stroke Z600 XY+-12 LFF=365-965 LT=1003 LS=80 LP=180 #MQJ
Additive-Variant to CF63_40T: below Basedom DN100CF with 6xDN16CF LFF +6mm #MQK
UHV-XYZ-Translator Orion CF63_63T_050_12 stroke Z50 XY+-12 LFF=220-270 LT=325 LS=100 LP=169 #MRA
UHV-XYZ-Translator Orion CF63_63T_100_12 stroke Z100 XY+-12 LFF=220-320 LT=375 LS=100 LP=169 #MRB
UHV-XYZ-Translator Orion CF63_63T_150_12 stroke Z150 XY+-12 LFF=230-380 LT=435LS=100 LP=169 #MRC
UHV-XYZ-Translator Orion CF63_63T_200_12 stroke Z200 XY+-12 LFF=240-440 LT=495 LS=100 LP=169 #MRD
UHV-XYZ-Translator Orion CF63_63T_250_12 stroke Z250 XY+-12 LFF=250-500 LT=555 LS=100 LP=169 #MRE
UHV-XYZ-Translator Orion CF63_63T_300_12 stroke Z300 XY+-12 LFF=260-560 LT=615 LS=90 LP=181 #MRF
UHV-XYZ-Translator Orion CF63_63T_400_12 stroke Z400 XY+-12 LFF=290-690 LT=745 LS=90 LP=181 #MRG
UHV-XYZ-Translator Orion CF63_63T_500_12 stroke Z500 XY+-12 LFF=320-820 LT=875 LS=100 LP=169 #MRH
UHV-XYZ-Translator Orion CF63_63T_600_12 stroke Z600 XY+-12 LFF=350-950 LT=1005 LS=100 LP=169 #MRJ
Additive-Variant to CF63_63T: below Basedom DN100CF mit 6xDN16CF LFF +10mm #MRK
Additive to CF63_40T.CF63_63T: Transmission for Z-Axis 1:2 Scale 0.02 LT+35 #MRL
Additive to CF63_40T.CF63_63T: Transmission for Z-Axis 1:20 Scale 2my LT+55 #MRM
Additive to CF63_40T.CF63_63T: Transmission for Z-Axis 1:40 Scale 1my LT+55 #MRN
High-speed assistance for Z-Axis #MRP

Rotator

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request

UHV-Rotator RD

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator
UHV-Rotator RD CF40 L=120 ID=25 differentially pumped. continuously rotatable. Scale division 1° #RDG
UHV-Rotator RD CF40 L=120 ID=25 differentially pumped. continuously rotatable. for engine #RDH
UHV-Rotator RD CF63 L=131.5 ID=55 differentially pumped. continuously rotatable. Scale division 1° #RDJ
UHV-Rotator RD CF63 L=131.5 ID=55 differentially pumped. continuously rotatable. for engine #RDK
UHV-Rotator RD CF100 L=45 ID=102 differentially pumped. continuously rotatable. Scale division 1° #RDL
UHV-Rotator RD CF100 L=45 ID=102 differentially pumped. continuously rotatable. for engine #RDM

UHV-Rotator RB

UHV-application
- Temperature to 230°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
UHV-Rotator RB CF16 B=106 D=43 L=20 S=6 bellows sealed. continuously rotatable #RBG
UHV-Rotator RB CF40 B=120 D=48 L=50 S=6 bellows sealed. continuously rotatable #RBH

UHV-Rotator RM

UHV-application
- Temperature to 150°C
- vacuum to 1E-11 hPa
- He-Leckrate < 2E-11Pa m3 /s
- manual actuator, Motor on request
UHV-Rotator RM CF16 D=42 B=84 L=19 magnet coupling. continuously rotatable #RMG
UHV-Rotator RM CF16 D=42 B=84 L=19 magnet coupling. continuously rotatable. for engine #RMH
UHV-Rotator RM CF40 D=68 B=81 L=20 magnet coupling. continuously rotatable #RMJ
UHV-Rotator RM CF40 D=68 B=81 L=20 magnet coupling. continuously rotatable. for engine #RMK

ISO-K Double clamp

Formed bellows ID=4.8 OD=7.5 wall=0.1 length=47 ends=U6.5 p*=120 movement=5/12/92 Tmax=400°C #WBA
Formed bellows ID=6.2 OD=10 wall=0.1 length=10 ends=U8.5 p*=65 movement=2 #WBC
Formed bellows ID=6.2 OD=10 wall=0.1 length=24 ends=U8.4 p*=55 movement=5/5/71 Tmax=400°C 1.4541 #WBD
Formed bellows ID=6.2 OD=10 wall=0.1 length=33 ends=L8.7x4 p*=55 movement=5/7/71 Tmax=400°C #WBE
Formed bellows ID=9 OD=14.3 wall=0.1 length=20 ends=13.4 p*=28 movement=2/1/30 Tmax=400°C #WBG
Formed bellows ID=10 OD=15 wall=0.1 length=18 ends=U14 p*=42 movement=3/1/28 Tmax=400°C #WBH
Formed bellows ID=15 OD=22.2 wall=0.1 length=12 ends=U20 p*=16 movement=3/1/19 Tmax=400°C #WBK
Formed bellows ID=15 OD=22.2 wall=0.1 length=26 ends=U20 p*=16 movement=7/3/43 Tmax=400°C 11convolution #WBL
Formed bellows ID=15 OD=22.2 wall=0.1 length=33 ends=U20 p*=16 movement= Tmax=400°C 15convolution #WBM
Formed bellows ID=15 OD=22.2 wall=0.1 length=33 ends=U20 p*=16 movement= Tmax=400°C 15convolution WBM= #WCP
Formed bellows ID=15 OD=22.2 wall=0.1 length=41 ends=U20 p*=16 movement=9/6/56 Tmax=400°C 18convolution #WBN
Formed bellows ID=15 OD=22.2 wall=0.1 length=41 ends=U20 p*=16 movement=9/6/56 Tmax=400°C 18convolution WBN= #WCN
Formed bellows ID=16 OD=24 wall=0.1 length=30 ends=U21.4 p*=11 movement=9/5/52 Tmax=400°C #WBP
Formed bellows ID=20.8 OD=31.5 wall=0.15 length=24 ends=U29 p*=6 movement=8/2/35 Tmax=400°C #WBQ
Formed bellows ID=39.8 OD=54.3 wall=0.15 Ende=U44.3 p*=8 movement=35/31/86 Tmax=400°C #WBU
Formed bellows ID=40.8 OD=58.3 wall=0.15 length=75 ends=U 1.4404 #WBV
Formed bellows ID=40.8 OD=58.3 wall=0.15 length=105 ends=U 1.4404 #WBW
Formed bellows ID=40.8 OD=58.3 wall=0.15 length=1200 ends=U 1.4404 #WBX
Formed bellows ID=50 OD=69.3 wall=0.15 length=1200 lang U 1.4404 #WBY
Formed bellows ID=55 OD=75 wall=0.2 16convolution L=80 ends U63.0 1.4541 #WBZ
Formed bellows ID=107 OD=131.5 wall=2x0.3 8convolution ends cone Ø132.5 1.4541 #WB3
Formed bellows ID=108 OD=134 wall=0.3 12convolution length=90 ends=L108 p*=4 movement=36/9/34 Tmax=400°C #WB4
Formed bellows ID=150 OD=183 wall=0.3 12convolution length=95 ends=U165 p*=4 movement=60/11/41 Tmax=400°C #WB5
Formed bellows ID=158 OD=183 wall=0.3 11convolution ends=L D=159 1.4404 #WB6
Formed bellows ID=158 OD=183 wall=0.4 9convolution Lflex=75 Ende L Lend=46 D=159 GL163 1.4404 Cax ca. 150N/mm #WB7
Formed bellows ID=218 OD=249 wall=0.3 6convolution LF=90 ends=L218x80 p*=3 movement=25/3/12 Tmax=400°C #WB8
Formed bellows ID=253 OD=300 wall=0.4 length=100 6convolution ends=L253 p*=2 movement=36/4/15 Tmax=400°C #WB9

- Temperature: -196 to 200 °C
- pressure range 10-13 hPa to 2500 hPa gauge pressure
- more dim. acc. to table

- Temperature: -196 to 200 °C
- pressure range 10-13 hPa to 2500 hPa gauge pressure
- more dim. acc. to table
Contact us:
Kirchweg 3, 34317 Habichtswald, Germany
Phone: +49 5606 / 563 174
Fax: +49 5606 / 563 175
E-Mail: info@metallicflex.de
©opyright 2015 METALLIC FLEX GmbH. All rights reserved.

Price information / Offer

Non-binding use

Enter here for an offer:

Insert article by clicking on it

Delete selected article by clicking on selection

Enter quantity

Selected articles: Qty:

Data protection
